| Ordering Information |
| Standard |
CAPA13RPHGG-V1605B
(P/N: E38E13R104) | 3.5” Embedded SBC with AMD Ryzen? V1605B |
| (2.0 - 3.6 GHz, 2MB Cache, 15W) DisplayPort, 2 HDMI, LVDS |
| and 2 GbE LAN, without fan |

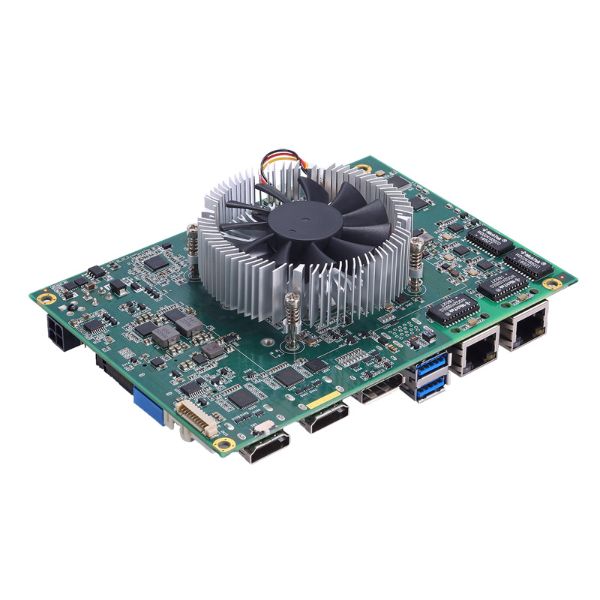

CAPA13RPHGG-V1605B w/fan
(P/N: E38E13R108) | 3.5” Embedded SBC with AMD Ryzen? V1605B |
| (2.0 - 3.6 GHz, 2MB Cache, 15W) DisplayPort, 2 HDMI, LVDS, |
| 2 GbE LAN and fan |
CAPA13RPHGG-V1807B
(P/N: E38E13R103) | 3.5” Embedded SBC with AMD Ryzen? V1807B |
| (3.35 - 3.8 GHz, 2MB Cache, 45W) DisplayPort, 2 HDMI, |
| LVDS and 2 GbE LAN, without fan |
CAPA13RPHGG-V1807B w/fan
(P/N: E38E13R107) | 3.5” Embedded SBC with AMD Ryzen? V1807B |
| (3.35 - 3.8 GHz, 2MB Cache, 45W) DisplayPort, 2 HDMI, |
| LVDS, 2 GbE LAN and fan |
| Optional |
CAPA13RPH4G-V1605B
(P/N: E38E13R101) | 3.5” Embedded SBC with AMD Ryzen? Embedded V1605B |
| (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort, |
| 2 HDMI, LVDS, and 4 GbE LAN, without fan |
CAPA13RPH4G-V1605B w/fan
(P/N: E38E13R106) | 3.5” Embedded SBC with AMD Ryzen? Embedded V1605B |
| (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort, |
| 2 HDMI, LVDS, 4 GbE LAN, and fan |
CAPA13RPH4G-V1807B
(P/N: E38E13R100) | 3.5” Embedded SBC with AMD Ryzen? Embedded V1807B |
| (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort, |
| 2 HDMI, LVDS, and 4 GbE LAN, without fan |
CAPA13RPH4G-V1807B w/fan
(P/N: E38E13R105) | 3.5” Embedded SBC with AMD Ryzen? Embedded V1807B |
| (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort, |
| 2 HDMI, LVDS, 4 GbE LAN, and fan |
| AX93A22 (P/N: E393A22100) | HD codec audio board for Mic-in/Line-in/Line-out |
| 594H3186800E | Buzzer cable 9 x 55 mm 2-pin, L=400 mm |
| 59380880250E | COM port cable DB9--9 x 1P, P=1.25, L=250 mm |
| 594E8422800E | 2 x USB 2.0 cable with bracket, 180 mm |
| 7128E13R000E | Heatspreader |
